Description
EP-LM-LUU
EVER POWER supplies this long type linear bearings family for longer support zones and machines with a specified long bushing envelope. Start the selection with bore, OD, extended length, housing depth and lubrication access so the quotation is tied to the actual machine interface.
Nominal range: Ø6-Ø60 mm. Configuration: long sealed body.
Technical profile
| Parameter | Value |
|---|---|
| Series identity | EP-LM-LUU |
| Nominal range | Ø6-Ø60 mm |
| Available configuration | long sealed body |
| Mechanical interface | extended cylindrical housing and round shaft |
| Fit / tolerance note | confirm housing depth and shaft fit before replacement |
| Typical applications | longer support zones and machines with a specified long bushing envelope |
| RFQ selection inputs | bore, OD, extended length, housing depth and lubrication access |
Representative EP- models
The EP- prefix is the public sales identity used on this site; the engineering series code follows it for cross-reference.
| EP- model | Nominal family range | Configuration note |
|---|---|---|
| EP-LM6LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM8LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM12LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM16LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM25LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM40LUU | Ø6-Ø60 mm | long sealed body |
| EP-LM60LUU | Ø6-Ø60 mm | long sealed body |
Selection and replacement notes
confirm housing depth and shaft fit before replacement
For replacement work, send the old code plus a photo or dimensional sketch. For a new design, send motion duty, mounting envelope and the selection inputs above.

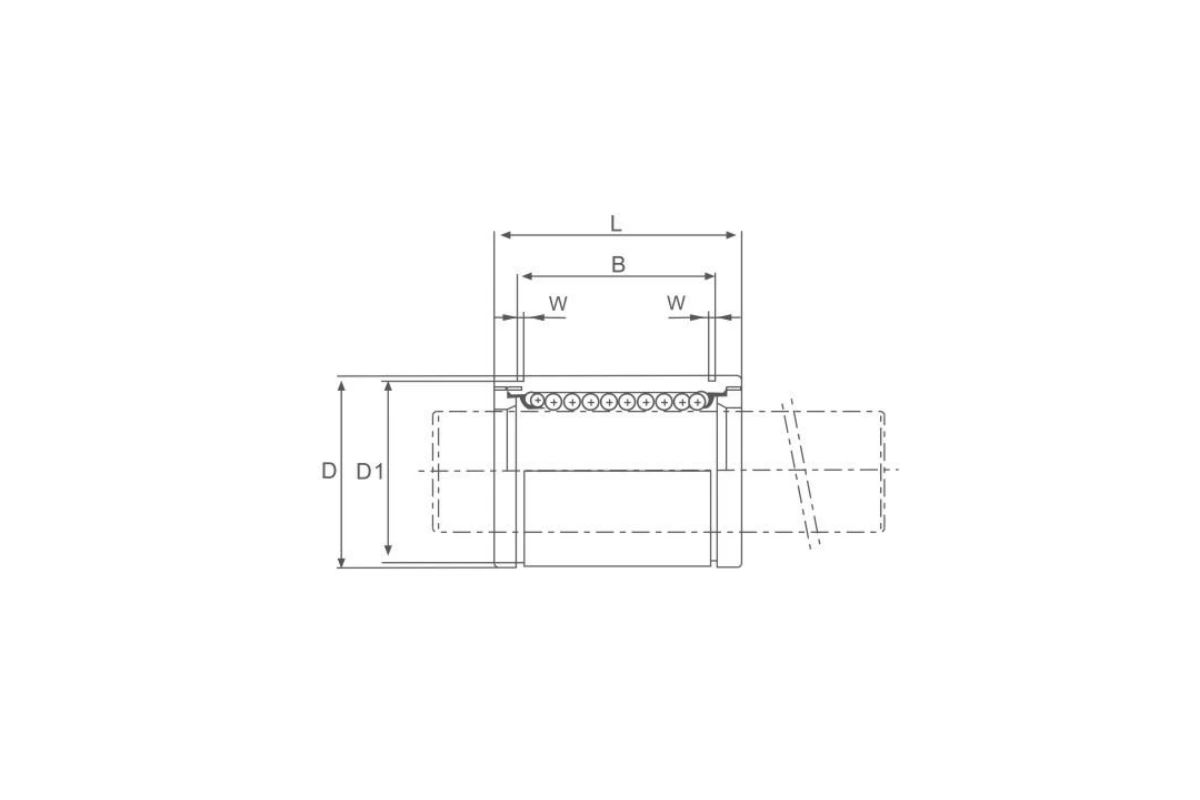

Dimensional reference
What to verify
Check the shaft or rail size first, then the mounting envelope. On flanged and housed products, bolt pattern and center height can be just as important as the nominal bore.
Related components
Common companions include precision linear shafts, shaft supports or a housed/rail unit. Confirm mating dimensions before treating related parts as a matched set.
Need a dimensional check or quote?
Send the model, quantity, interface dimensions and application.
