Description
EP-DSG
EVER POWER supplies this ball screw nut support brackets family for ball screw axes, CNC feed systems and automation modules. Start the selection with ball screw/nut reference, center height, bolt pattern and bracket envelope so the quotation is tied to the actual machine interface.
Nominal range: DSG12H-DSG50H. Configuration: nut-support bracket family.
Technical profile
| Parameter | Value |
|---|---|
| Series identity | EP-DSG |
| Nominal range | DSG12H-DSG50H |
| Available configuration | nut-support bracket family |
| Mechanical interface | support/mounting component for ball screw nut assembly |
| Fit / tolerance note | match nut interface, bolt pattern, center height and machine mounting |
| Typical applications | ball screw axes, CNC feed systems and automation modules |
| RFQ selection inputs | ball screw/nut reference, center height, bolt pattern and bracket envelope |
Representative EP- models
The EP- prefix is the public sales identity used on this site; the engineering series code follows it for cross-reference.
| EP- model | Nominal family range | Configuration note |
|---|---|---|
| EP-DSG12H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG16H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG20H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG25H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG32H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG40H | DSG12H-DSG50H | nut-support bracket family |
| EP-DSG50H | DSG12H-DSG50H | nut-support bracket family |
Selection and replacement notes
match nut interface, bolt pattern, center height and machine mounting
For replacement work, send the old code plus a photo or dimensional sketch. For a new design, send motion duty, mounting envelope and the selection inputs above.

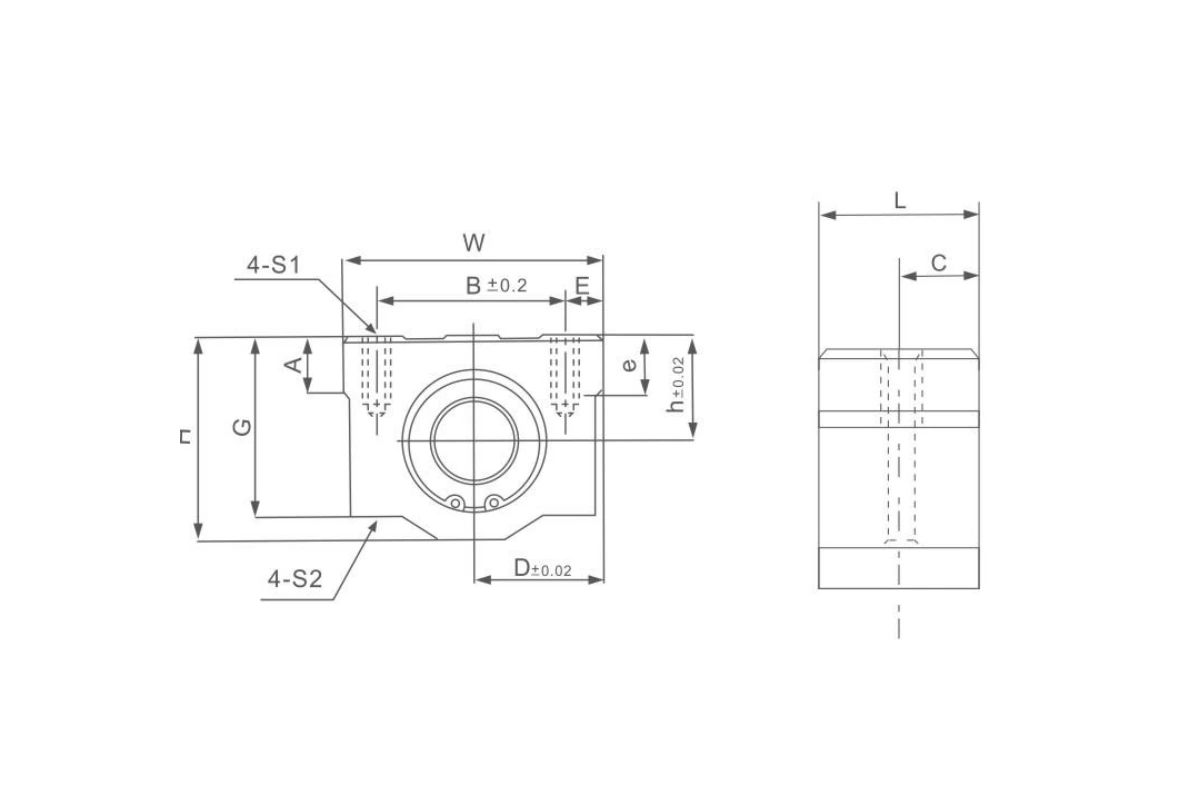

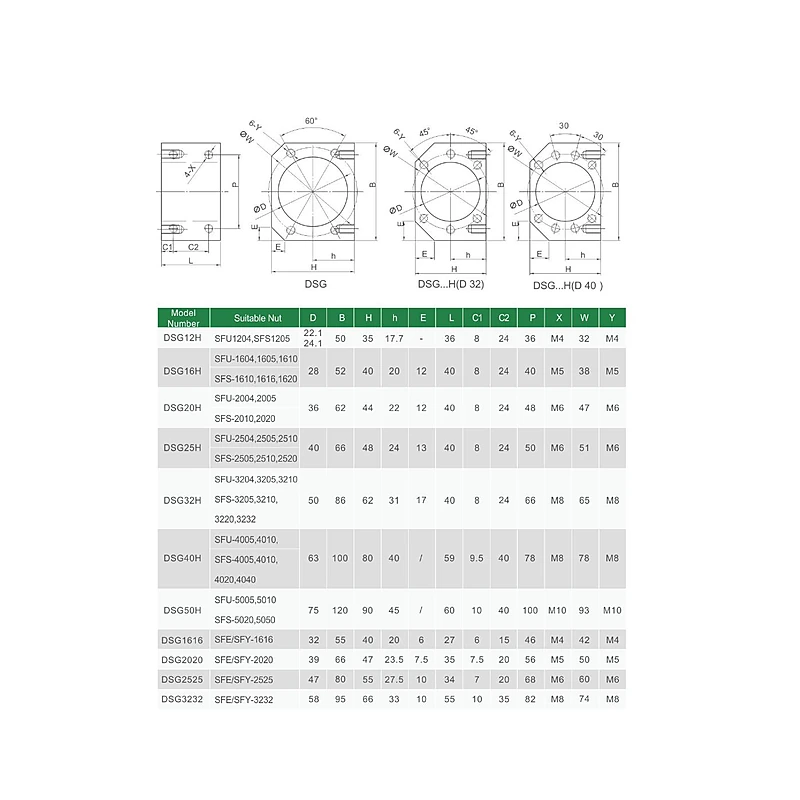

Dimensional reference
What to verify
Check the shaft or rail size first, then the mounting envelope. On flanged and housed products, bolt pattern and center height can be just as important as the nominal bore.
Related components
Common companions include precision linear shafts, shaft supports or a housed/rail unit. Confirm mating dimensions before treating related parts as a matched set.
Need a dimensional check or quote?
Send the model, quantity, interface dimensions and application.
